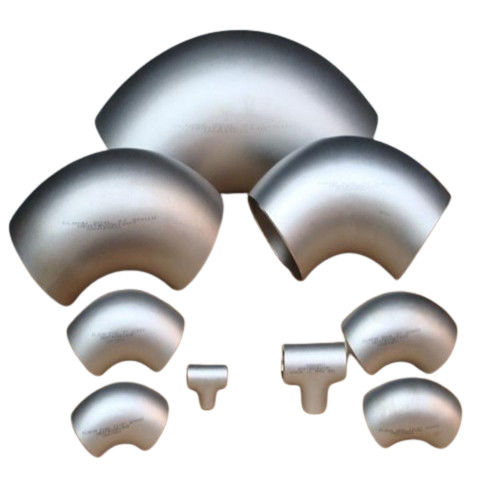

Hastelloy C276 pipe fittings Seamless / Butt Welded Fittings Elbow , Tee , Reducer

1. Nickel based alloy Introduction

• Incoloy alloy is a nickel based corrosion-resistant alloy of the iron chromium series. It has good corrosion resistance in reducing and oxidizing acids, as well as good resistance to stress corrosion cracking, pitting, and crevice corrosion. Commonly used materials in chemistry, petrochemicals, nuclear industry, and rare metal extraction include incoloy800, incoloy825, incoloy926, etc.
• Inconel alloy is a nickel, chromium, and iron solution strengthening alloy with excellent high-temperature corrosion resistance and oxidation resistance, as well as excellent cold and hot processing and welding performance. It is widely used in aviation, chemical, paper industry, and other fields. Commonly used ones include inconel600 inconel601 inconel625 inconel617 inconel718 inconelx750, etc.
• Hastelloy alloy is a nickel based corrosion-resistant and high-temperature alloy, mainly divided into two categories: nickel chromium alloy and nickel chromium molybdenum alloy. It has good corrosion resistance and thermal stability, and is commonly used in aviation, petrochemical, chemical fields, etc. Commonly used include Hastelloy C276, Hastelloy C22, Hastelloy b2, Hastelloy b3, Hastelloy C4, Haynes 230, Haynes 188, etc.

2. Hastelloy C276 Pipe Fittings

• Material

This alloy exhibits excellent corrosion resistance to most corrosive media in both oxidation and reduction states. Excellent resistance to point corrosion, crevice corrosion, and stress corrosion cracking. Alloy is suitable for various chemical process industries containing oxidizing and reducing media. The higher content of molybdenum and chromium makes the alloy resistant to chloride ion erosion, and the tungsten element further improves its corrosion resistance. Hastelloy C-276 is one of the few materials that can withstand corrosion from humid chlorine gas, hypochlorite, and chlorine dioxide solutions. This alloy exhibits significant corrosion resistance to high concentrations of chloride solutions, such as iron chloride and copper chloride.

Chemical composition

Physical property

• Specification of pipe fittings

Material Mark :ASTM B366 WPHC276 UNS N10276

Standard : ANSI/ASME B16.9, B16.28, MSS-SP-43.

Size : 1/2''~48''(Seamless);16''~110''(Welded)

Wall Thickness: SCH5-STD-SCH XXS

3. Application area

Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc. We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.
