Product Details
Place of Origin: China
Brand Name: HNEENERGY
Certification: ASME, ANSI, DIN, JIS,ISO etc.

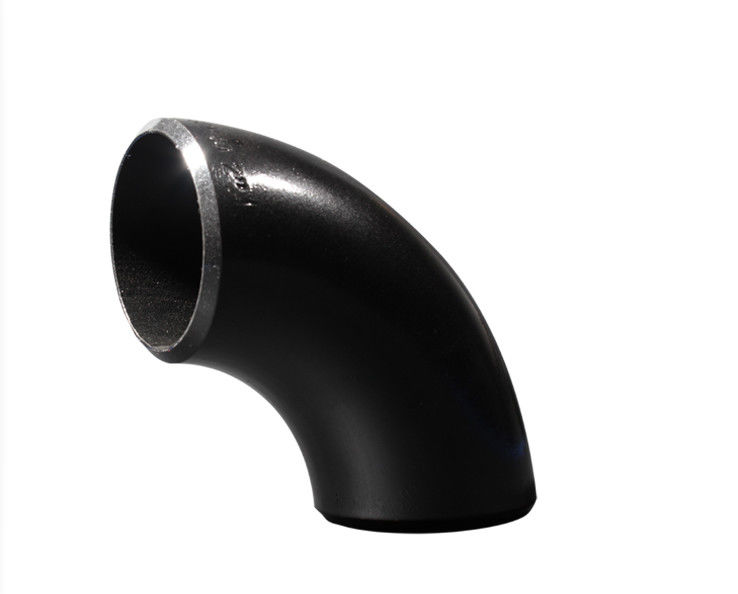

Model Number: 90°Carbon Steel Elbow
Payment & Shipping Terms
Minimum Order Quantity: 10
Packaging Details: wooden case or pallet or as per customers' requirement
Delivery Time: 7-30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 3000 Ton per Month
Material: |
Carbon Steel |
Angle: |
90 Degree |
Wall Thickness: |
SCH5-STD-SCH XXS |
Size: |
1/2''-48''(Butt Welding, Seamless) 16''~110''(welding) |
Material: |
Carbon Steel |
Angle: |
90 Degree |
Wall Thickness: |
SCH5-STD-SCH XXS |
Size: |
1/2''-48''(Butt Welding, Seamless) 16''~110''(welding) |
|
Product Introduction
|
Material | 20#,20G,ASTM A105,ASTM A234 WPB,ASTM A860 WPHY42,ASTM A860 WPHY46,ASTM A860 WPHY52,ASTM A860 WPHY56,ASTM A860 WPHY60,ASTM A860 WPHY65,ASTM A860 WPHY70,ASTM A420 WPL3,ASTM A420 WPL6 etc. |
| Manufacturing Standards |
ASME/ANSI B16.9 MSS-SP-43 JIS B2311/2220 DIN2615/2616/2617 ISO 3419,ISO 5251 |
|
| Wall Thickness | SCH5-STD-SCH XXS etc | |
| Outside Diameter |
1/2''-48''(Butt welding, seamless) 16''~110''(welding) |
ASME B16.9
| Nominal Size | Outside Diameter at Bevel | Center to End | ||
| 90°Elbows | ||||
| DN | NPS | OD | A | |
| LR | SR | |||
| 15 20 25 |
1/2 3/4 1 |
21.3 26.7 33.4 |
38 38 38 |
25 |
| 32 40 50 |
11/4 11/2 2 |
42.2 48.3 60.3 |
48 57 76 |
32 38 51 |
| 65 80 90 100 |
2 1/2 3 3 1/2 4 |
73.0 88.9 101.6 114.3 |
95 114 133 152 |
64 76 89 102 |
| 125 150 200 |
5 6 8 |
141.3 168.3 219.1 |
190 229 305 |
127 152 203 |
| 250 300 350 |
10 12 14 |
273.0 323.8 355.6 |
381 457 533 |
254 305 356 |
| 400 450 500 |
16 18 20 |
406.4 457.0 508.0 |
610 686 762 |
406 457 508 |
| 550 600 650 |
22 24 26 |
559.0 610.0 660.0 |
838 914 991 |
559 610 660 |
| 700 750 800 |
28 30 32 |
711.0 762.0 813.0 |
1067 1143 1219 |
711 762 813 |
| 850 900 950 |
34 36 38 |
864.0 914.0 965.0 |
1295 1372 1448 |
864 914 965 |
| 1000 1050 1100 |
40 42 44 |
1016.0 1067.0 1118.0 |
1524 1600 1676 |
1016 1067 1118 |
| 1150 1200 1300 |
46 48 52 |
1168.0 1219.0 1321.0 |
1753 1829 1981 |
1168 1219 1321 |
| 1400 1500 1600 |
56 60 64 |
1422.0 1524.0 1626.0 |
2134 2286 2438 |
1422 1524 1626 |
| 1700 1800 1900 2000 |
68 72 76 80 |
1727.0 1829.0 1930.0 2032.0 |
2591 2743 2896 3048 |
1727 1829 1930 2032 |
|
Notes: l Besides ASME, European standard EN, German standard DIN, Japanese standard (JIS), etc.are also applied.
|
||||
