OEM ODM Customized Carbon Steel Pipe Fittings Butt Welding A420 WPL3/L6

Introduction to ASTM A420

The ASTM A420 standard specifies requirements for wrought carbon steel and alloy steel fittings of seamless and welded construction, intended for low-temperature service. These fittings are designed for use in pressure piping and pressure vessel service. ASTM A420 addresses factors concerning impact testing and the fitting material's suitability for low-temperature applications.

Key Features of ASTM A420:

1. Material Scope:

ASTM A420 includes two primary grades of carbon steel and alloy steel fittings, specifically tailored for low-temperature environments where materials must maintain toughness and durability:

- LTCS (Low Temperature Carbon Steel): These are carbon steels designed to retain mechanical properties at temperatures down to -50°F (-45°C).

- WPL Grades: This designation stands for weldable line pipe and includes several grades modified for better suitability to low temperature.

2. Product Forms:

The standard covers several forms of fittings, including but not limited to:

- Elbows

- Tees

- Reducers

- Caps

- Crosses

3. Manufacturing Process:

The fittings can be produced through seamless or welded processes. Seamless fittings are made from a single billet of steel, while welded fittings are produced by joining pieces of steel plate or sections.

4. Chemical and Mechanical Requirements:

ASTM A420 specifies both chemical composition and mechanical properties, such as tensile strength, yield strength, elongation, and toughness. The requirement for Charpy V-notch impact testing is a key component of the standard, ensuring that the material will perform in cold environments without fracturing.

5. Applications:

Fittings conforming to ASTM A420 are typically used in industries such as oil and gas, petrochemical, and power generation, especially where the transport of fluids at low temperatures is involved. They are crucial for ensuring the integrity and safety of the piping systems under cold conditions.

6. Welding and Forming:

ASTM A420 fittings are intended to be butt-welded to pipes. Proper welding procedures must be followed to ensure good weldability and to maintain the low-temperature properties of the fitting. Cold forming of fittings should also be done carefully to avoid cracking.

Conclusion:

ASTM A420 is an essential specification for manufacturers and engineers involved in the design and construction of piping systems operating under low-temperature conditions. It provides a guideline for producing high-quality fittings that meet rigorous safety and performance standards in cold environments.

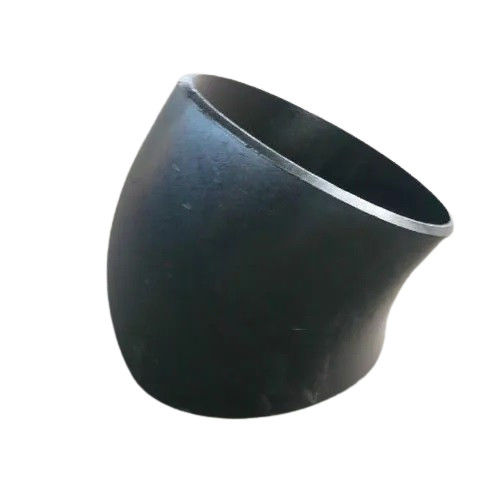

• LR Elbow BW45°

ASME B16.9

• 90°Carbon Steel Elbow
• LR/SR Elbow BW180°

ASME B16.9

​

• LR/SR Elbow BW180°

ASME B16.9

• Details

• Our company can produce carbon steel, stainless steel, and alloy steel pipe fittings according to standards such as ASME/ANSI, JIS, DIN, ISO etc. The varieties include equal diameter tees, reducing tees, tees, elbows, cross, concentric reducer, eccentric reducer etc.We provide the very best quality pipe and fittings, prompt delivery and reliable services at competitive prices.
