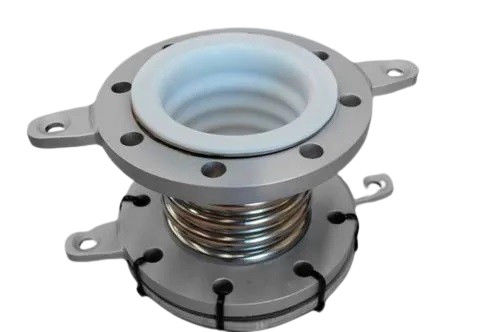

Negative Pressure Resistant Teflon Lined Expansion Joints Compensator DN25-DN3000mm

Name: Negative Pressure Resistant Teflon Lined Expansion Joints Compensator DN25-DN3000mm
Brand: Beijing Hownew Energy Technology Group Co., Ltd
SKU: Negative pressure resistant
Availability: InStock

Product Details

Place of Origin: China

Brand Name: HNEENERGY

Certification: ASME, ANSI, DIN, JIS,ISO etc.

Model Number: Negative pressure resistant

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: wooden case or pallet or as per customers' requirement

Delivery Time: 7-30 days

Payment Terms: L/C, T/T, Western Union, MoneyGram

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                Negative Pressure Resistant teflon lined expansion joints, DN3000mm Teflon Lined Expansion Joints, Expansion Joints Compensator DN25


Working Temperature:	-50～200℃	Type:	The Outer Part Is A Stainless Steel Metal Compensator Lined With PTFE
Pressure Level:	PN0.01-0.6MPa

Working Temperature:	-50～200℃
Type:	The Outer Part Is A Stainless Steel Metal Compensator Lined With PTFE
Pressure Level:	PN0.01-0.6MPa

Product Description

Negative pressure resistant compensator

Available sizes: DN25-DN3000mm
Wave number unlimited, length <=3000mm
Fatigue times: >=10000 times
Pressure rating: PN0.25-2.5MPa
Operating temperature: <=180℃

The PTFE corrugated compensator (also known as an expansion joint) is an industrial device used in piping systems with highly corrosive media to compensate for displacement due to thermal expansion and contraction, as well as installation misalignment, thereby reducing vibration in the piping system.

The outer part is a stainless steel metal braided mesh, and the inner part is PTFE. It is resistant to acids, alkalis, salts, and organic solvents of various concentrations. Available on the market in sizes from DN25 to DN600 mm, it can withstand over 5000 continuous fatigue cycles. Pressure ratings: PN0.6MPa, PN1.0MPa. Operating temperature: ≤200°C.
